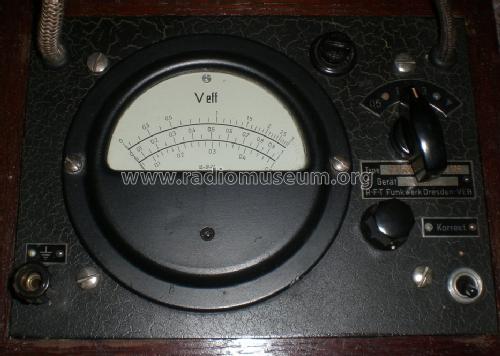

Funkwerk Dresden,: Röhrenvoltmeter RV6 KM586 [Equipment] ID = 1607348 723x933

Select picture or schematic to display from thumbnails on the right and click for download.

For model Röhrenvoltmeter RV6 KM586, Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

Country:

Germany

Manufacturer / Brand:

Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

Year: 1949 ?

Category: Service- or Lab Equipment

Valves / Tubes

3: 955 unknown_Tube GR26-12 AZ11

Wave bands	- without
Details
Power type and voltage	Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker	- - No sound reproduction output.
Power out
from Radiomuseum.org	Model: Röhrenvoltmeter RV6 KM586 - Funkwerk Dresden, VEB, RFT
Material	Wooden case
Shape	Tablemodel, with any shape - general.
Dimensions (WHD)	243 x 269 x 189 mm / 9.6 x 10.6 x 7.4 inch
Notes	Effektivwertmessgerät für Spannungen bis 3 V. Messbereiche: 0,5 V; 1 V; 3 V.

Model page created by a member from D. See "Data change" for further contributors.
