• Year
  • 1952 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 250241

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 10 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

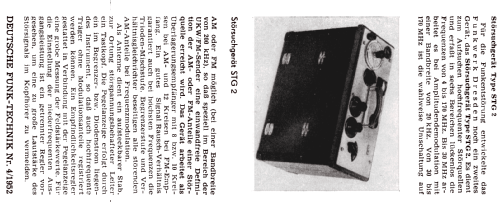

  • Model: Störsuchgerät STG 2 - Funkwerk Dresden, VEB, RFT
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Gerät zum Aufsuchen von Störquellen im Frequenzbereich von 4 bis 170 MHz; Betriebsarten: 4 bis 30 MHz = AM, 30 bis 170 MHz = AM oder FM; aufsteckbarer Antennenstab; Tastkopf für Störungen in Leitungen.

  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
