• Year
  • 1962 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 256041
    • Brand: FWE

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

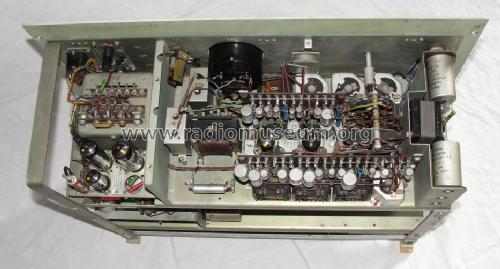

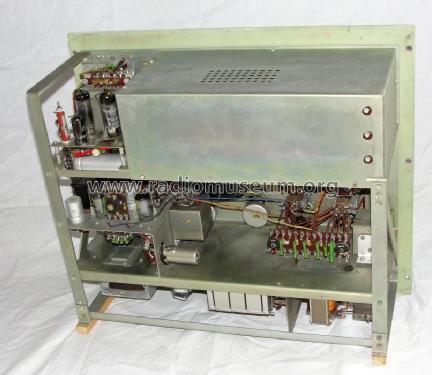

  • Model: Klirrfaktor-Meßgerät 236 b - Funkwerk Erfurt, VEB, RFT Ostd
  • Shape
  • Boatanchor (heavy military or commercial set >20 kg).
  • Dimensions (WHD)
  • 550 x 485 x 245 mm / 21.7 x 19.1 x 9.6 inch
  • Notes
  • Das Gerät dient zum Messen des Klirrfaktors von Wechselspannungen einer Grundfrequenz von 20...10000Hz.

    Meßbrücke:
    Bereich Grundwelle 20...10000Hz in 5 Bereiche aufgeteilt.
    20-100Hz / 90-500Hz / 450-1700Hz / 1500-5000Hz / 4500-10000Hz
    Bereich Oberwelle bis 30000Hz
    Meßbereich Klirrfaktor: 0,1...etwa 70%

    Generator:
    Frequenzbereich in 4 Stufen - 160Hz / 800Hz / 2400Hz / 5000Hz

    Das Gerät ist eine Weiterentwicklung des Typs 236 - neues Gehäuse, Röhren der 80er Serie, getrennte Anzeigegeräte für Generatorspannung und Klirrfaktor, .....

    Stabilisierung der Betriebsspannung erfolgt mit StR85/10 und PCL82.

  • Net weight (2.2 lb = 1 kg)
  • 29.5 kg / 64 lb 15.6 oz (64.978 lb)
  • Author
  • Model page created by Andreas Hamel. See "Data change" for further contributors.
