Resonanzmesser RM II (RM 2)

Resonanzmesser RM II ; Funkwerk Köpenick, (ID = 1595570) Equipment
Resonanzmesser RM II ; Funkwerk Köpenick, (ID = 74689) Equipment Resonanzmesser RM II ; Funkwerk Köpenick, (ID = 527282) Equipment
Resonanzmesser RM II ; Funkwerk Köpenick, (ID = 74690) Equipment Resonanzmesser RM II ; Funkwerk Köpenick, (ID = 1366716) Equipment

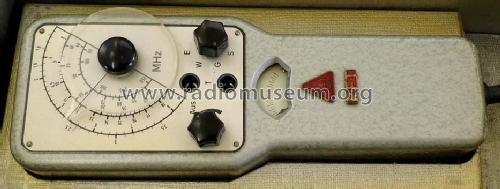

Resonanzmesser RM II ; Funkwerk Köpenick, (ID = 1366717) Equipment Resonanzmesser RM II ; Funkwerk Köpenick, (ID = 1366718) Equipment

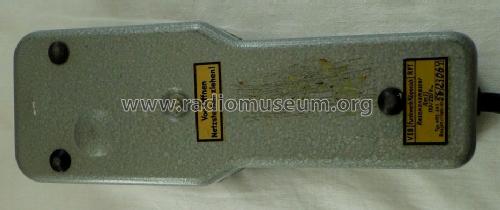

Resonanzmesser RM II ; Funkwerk Köpenick, (ID = 1366719) Equipment
Use red slider bar for more.
Resonanzmesser RM II ; Funkwerk Köpenick, (ID = 74689) Equipment
Funkwerk Köpenick,: Resonanzmesser RM II [Equipment] ID = 74689 850x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model Resonanzmesser RM II (RM 2), Funkwerk Köpenick, VEB, RFT; Berlin-Köpenick (Ostd.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Köpenick, VEB, RFT; Berlin-Köpenick (Ostd.)
Year: 1956 Category: Service- or Lab Equipment
Valves / Tubes 1: EC92
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Resonanzmesser RM II - Funkwerk Köpenick, VEB, RFT;
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 200 x 75 x 55 mm / 7.9 x 3 x 2.2 inch
Notes Grid-Dipper, 1,7 MHz bis 250 MHz mit 6 auswechselbaren Steckspulen (als RM I 100 kHz-20 MHz). Verwendbar als Resonanzmesser, modulierter Prüfsender, Absorptionswellenmesser, Detektorempfänger.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb

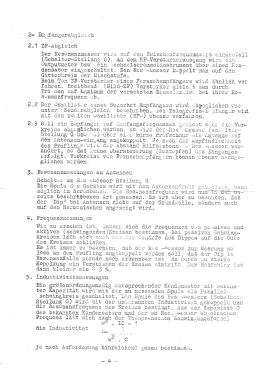

Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
