Lautsprecher-Chassis L2053PB

Lautsprecher-Chassis L2053PB; Funkwerk Leipzig, (ID = 1548900) Speaker-P Lautsprecher-Chassis L2053PB; Funkwerk Leipzig, (ID = 1544728) Speaker-P
Lautsprecher-Chassis L2053PB; Funkwerk Leipzig, (ID = 1544730) Speaker-P Lautsprecher-Chassis L2053PB; Funkwerk Leipzig, (ID = 1548902) Speaker-P
Lautsprecher-Chassis L2053PB; Funkwerk Leipzig, (ID = 1548903) Speaker-P
Use red slider bar for more.

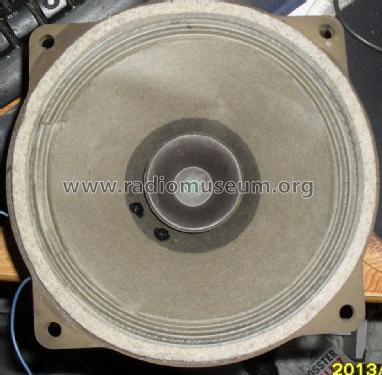

Lautsprecher-Chassis L2053PB; Funkwerk Leipzig, (ID = 1548900) Speaker-P
Funkwerk Leipzig,: Lautsprecher-Chassis L2053PB [Speaker-P] ID = 1548900 933x848
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecher-Chassis L2053PB, Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)
Year: 1961 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Lautsprecher-Chassis L2053PB - Funkwerk Leipzig, VEB, - vorm.
Material Bakelite case
Shape Chassis only or for «building in»
Dimensions (WHD) 200 x 200 x 113 mm / 7.9 x 7.9 x 4.4 inch
Notes

Breitband-Lautsprecherchassis; Impendanz: 6 Ω; Belastbarkeit: 4 VA; Frequenzbereich: ca. 60...13.000 Hz; Eigenresonanz: 75 Hz; AlNi-120-Magnet; Korb aus Bakelit. Tieftonmembran mit Hochtonkegel.

Net weight (2.2 lb = 1 kg) 1.320 kg / 2 lb 14.5 oz (2.907 lb)
Mentioned in -- Original prospect or advert

Model page created by Reinhard Riek. See "Data change" for further contributors.
