Lautsprecher-Chassis L3354PBK
 |
 |
 |
 |
 |
Use red slider bar for more.

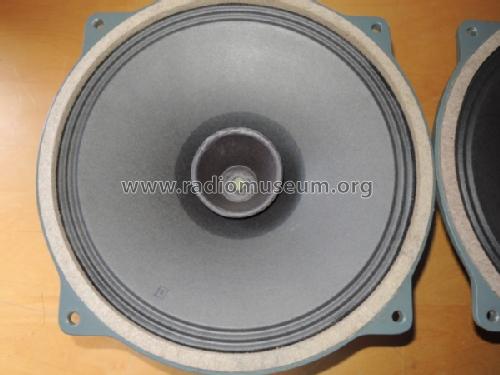

Funkwerk Leipzig,: Lautsprecher-Chassis L3354PBK [Speaker-P] ID = 1310920 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1958 ?? | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 30 cm = 11.8 inch |
| Power out | 12.5 W (unknown quality) |
| from Radiomuseum.org | Model: Lautsprecher-Chassis L3354PBK - Funkwerk Leipzig, VEB, - vorm. |
| Material | Metal case |
| Shape | Chassis only or for «building in» |
| Dimensions (WHD) | 300 x 300 x 162 mm / 11.8 x 11.8 x 6.4 inch |
| Notes | Breitband-Lautsprecher-Chassis, Impedanz: 6,3 Ω; Belastbarkeit: 12,5 VA; Frequenzbereich: ca. 40...12.000 Hz; Eigenresonanz: 55 Hz; AlNi-120-Magnet; Leichtmetall-Gusskorb. Einsatz in Kinobeschallungsanlagen, z.B. im Lautsprecherkoffer. |
| Net weight (2.2 lb = 1 kg) | 4.2 kg / 9 lb 4 oz (9.251 lb) |
| Collectors' prices | |
| Mentioned in | -- Original prospect or advert |
Model page created by Frithjof Grassmann. See "Data change" for further contributors.
