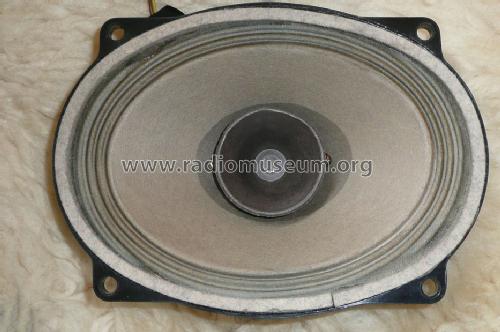

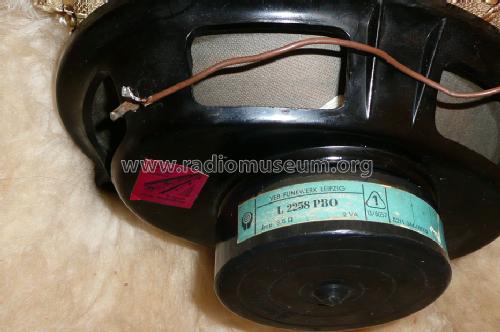

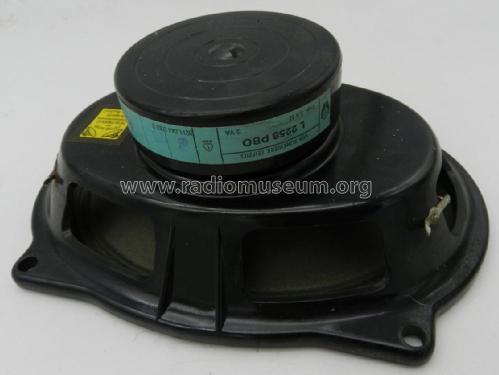

Lautsprecherchassis L2258PBO

Lautsprecherchassis L2258PBO; Funkwerk Leipzig, (ID = 1029602) Speaker-P Lautsprecherchassis L2258PBO; Funkwerk Leipzig, (ID = 1029603) Speaker-P
Lautsprecherchassis L2258PBO; Funkwerk Leipzig, (ID = 1029604) Speaker-P
Use red slider bar for more.
Lautsprecherchassis L2258PBO; Funkwerk Leipzig, (ID = 1029602) Speaker-P
Funkwerk Leipzig,: Lautsprecherchassis L2258PBO [Speaker-P] ID = 1029602 933x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecherchassis L2258PBO, Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)
Year: 1957 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Lautsprecherchassis L2258PBO - Funkwerk Leipzig, VEB, - vorm.
Material Bakelite case
Shape Chassis only or for «building in»
Dimensions (WHD) 210 x 150 x 75 mm / 8.3 x 5.9 x 3 inch
Notes Breitbandlautsprecher mit Hochtonkegel.
Impedanz: 3,6 Ohm; Nennbelastbarkeit: 2VA. Magnetsystem: Dauermagnet Typ 19/5. Korb: Bakelit offen.
Net weight (2.2 lb = 1 kg) 0.880 kg / 1 lb 15 oz (1.938 lb)
Source of data - - Data from my own collection

Model page created by Klaus-Hartwig Müller. See "Data change" for further contributors.
