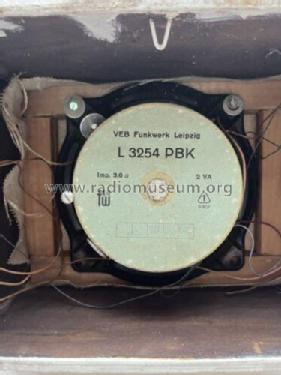

Lautsprecherchassis L3254PBK

Country:  Germany
Manufacturer / Brand:  Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)
Year: 1960 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
Power out
from Radiomuseum.org Model: Lautsprecherchassis L3254PBK - Funkwerk Leipzig, VEB, - vorm.
Material Bakelite case
Shape Chassis only or for «building in»
Dimensions (WHD) 165 x 165 x 80 mm / 6.5 x 6.5 x 3.1 inch
Notes

Breitband-Lautsprecherchassis; Impendanz: 3,6 Ω; Belastbarkeit: 2 VA; Frequenzbereich: ca. 60...15.000 Hz; Eigenresonanz: 75 Hz; Manipermmagnet; Korb aus Bakelit.

Net weight (2.2 lb = 1 kg) 1.265 kg / 2 lb 12.6 oz (2.786 lb)
Mentioned in -- Original prospect or advert

Model page created by Michael Mischke. See "Data change" for further contributors.
