Mikrofon 6102

Mikrofon 6102; Funkwerk Leipzig, (ID = 6999) Microphone/PU
Mikrofon 6102; Funkwerk Leipzig, (ID = 1112938) Microphone/PU Mikrofon 6102; Funkwerk Leipzig, (ID = 383136) Microphone/PU
Mikrofon 6102; Funkwerk Leipzig, (ID = 1112943) Microphone/PU Mikrofon 6102; Funkwerk Leipzig, (ID = 1112945) Microphone/PU
Use red slider bar for more.
Mikrofon 6102; Funkwerk Leipzig, (ID = 1112938) Microphone/PU
Funkwerk Leipzig,: Mikrofon 6102 [Microphone/PU] ID = 1112938 335x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mikrofon 6102, Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)
Year: 1951 ? Category: Microphone or Pick-up element
Valves / Tubes 2: RV12P2000 or UBF11 AZ12
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Mikrofon 6102 - Funkwerk Leipzig, VEB, - vorm.
Material Metal case
Shape Tablemodel, with any shape - general.

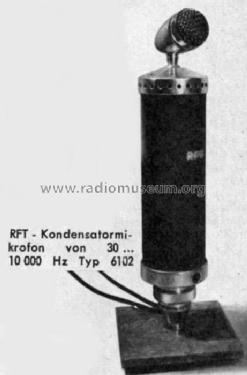

Notes Kondensator-Mikrofon in Form der "Flasche", zur Frühjahresmesse in Leipzig 1951 vorgestellt.
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funktechnik 07/1951
