• Year
  • 1961 ?
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 306276
    • alternative name: Bernburg Funkw. A. Ulrich
    • Brand: Radio Jäckel

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

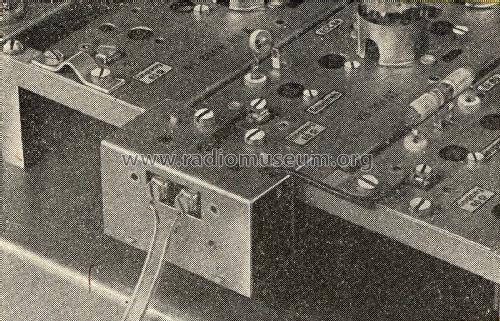

  • Model: Symmetriertrafo ST03 - Funkwerkstätten Bernburg, PGH;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 22 x 35 x 60 mm / 0.9 x 1.4 x 2.4 inch
  • Notes
  • Spezielles Symmetrierglied zum Anschluss von symmetrischen 240-Ω-Antennenleitungen an einen unsymmetrischen 60-Ω-Eingang des Verstärkers GAV50.
    Nutzbar für die Frequenzbereiche VHF I, VHF II und VHF III.

  • Net weight (2.2 lb = 1 kg)
  • 0.065 kg / 0 lb 2.3 oz (0.143 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
