Tuner FM 60
Gaillard; Paris
- Country
- France
- Manufacturer / Brand
- Gaillard; Paris
- Year
- 1959/1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 287606
provenant d'un site internet
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 10800 kHz
- Tuned circuits
- 11 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Tuner FM 60 - Gaillard; Paris
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 280 x 105 x 130 mm / 11 x 4.1 x 5.1 inch
- Notes
-
Tuner FM vendu en kit pour la somme de 237 NF ou complet en ordre de marche pour 366.40 NF.
8 tubes + 3 diodes. 3 étages MF à couplage contrôlé. Bande passante 300 kcs. Stéréo prévue.
- Price in first year of sale
- 366.40 FRF
- Mentioned in

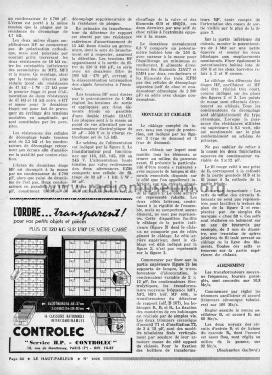

- Le Haut-Parleur (N° 1026, avril 1960, pp.31)
- Literature/Schematics (2)
- Revue l’électricité moderne, N° 136, nov. 1960
- Author
- Model page created by Jean-Pierre Ambroise. See "Data change" for further contributors.
