For model Coronado 15RA1-43-7654A, Gamble-Skogmo, Inc.; Minneapolis, MN:

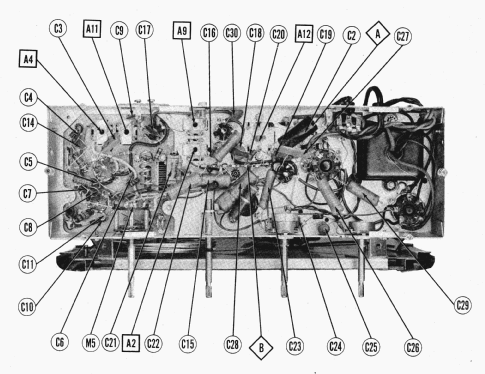

SAMS Photofact reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BE6 6BA6 6BA6 12AT7 6AL5 6AV6 6V6GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.375 inch = 23.8 cm
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Coronado 15RA1-43-7654A - Gamble-Skogmo, Inc.;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes The Coronado 15RA1-43-7654A made by Gamble-Skogo Inc. is an AC operated combination AM-FM Phono-Radio with a loop antenna for AM.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951

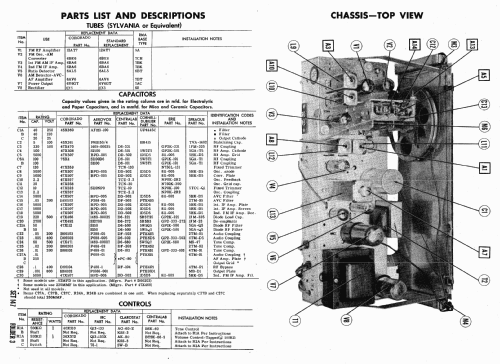

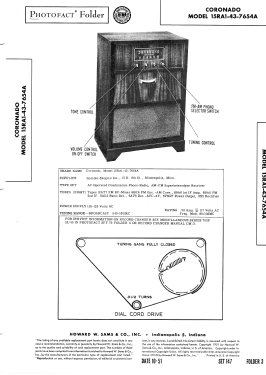

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-51, set 147, folder 3)
