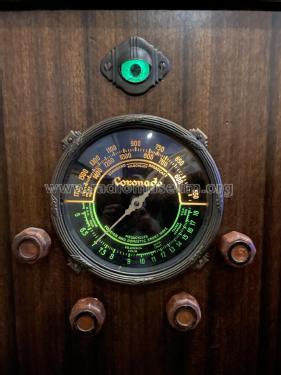

47RL
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Coronado | ||||
|---|---|---|---|---|---|
| Year: 1937 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: 6K7 76 6K7 6K7 6B7 6F6 80 |
| Main principle | Superhet with RF-stage; ZF/IF 456 kHz |
|---|---|
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 115 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm |
| Power out | |
| from Radiomuseum.org | Model: 47RL - Gamble-Skogmo, Inc.; |
| External source of data | Ernst Erb |

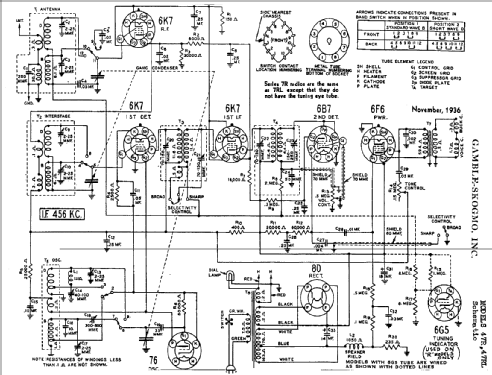

| Circuit diagram reference | Rider's Perpetual, Volume 8 = 1937 and before |
All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
Here you find 658 models, 290 with images and 600 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
