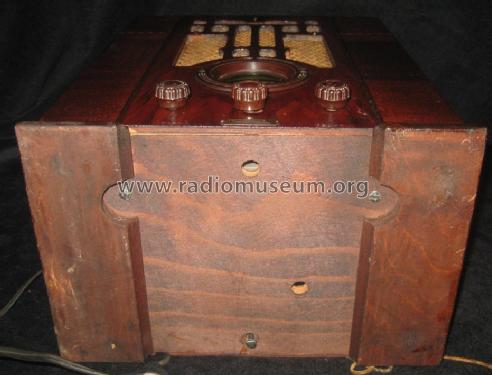

578 ; Gamble-Skogmo, Inc.; (ID = 1047884) Radio
Use red slider bar for more.
578 ; Gamble-Skogmo, Inc.; (ID = 1047878) Radio
Gamble-Skogmo, Inc.;: 578 [Radio] ID = 1047878 933x1031
Select picture or schematic to display from thumbnails on the right and click for download.
For model 578, Gamble-Skogmo, Inc.; Minneapolis, MN:
Ebay Item number: 390340360064

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1936 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6B7 42 80
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 119 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 578 - Gamble-Skogmo, Inc.;
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
