585C Ch= Series C

585C Ch= Series C; Gamble-Skogmo, Inc.; (ID = 367726) Radio

585C Ch= Series C; Gamble-Skogmo, Inc.; (ID = 367727) Radio

585C Ch= Series C; Gamble-Skogmo, Inc.; (ID = 367729) Radio
585C Ch= Series C; Gamble-Skogmo, Inc.; (ID = 2148233) Radio
Use red slider bar for more.
585C Ch= Series C; Gamble-Skogmo, Inc.; (ID = 2148233) Radio
Gamble-Skogmo, Inc.;: 585C Ch= Series C [Radio] ID = 2148233 1400x1728
Select picture or schematic to display from thumbnails on the right and click for download.
For model 585C Ch= Series C, Gamble-Skogmo, Inc.; Minneapolis, MN:
Restored Coronado (Belmont) Type C.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1936 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6F7 6D6 75 42 80
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 119 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 585C Ch= Series C - Gamble-Skogmo, Inc.;
External source of data Ernst Erb

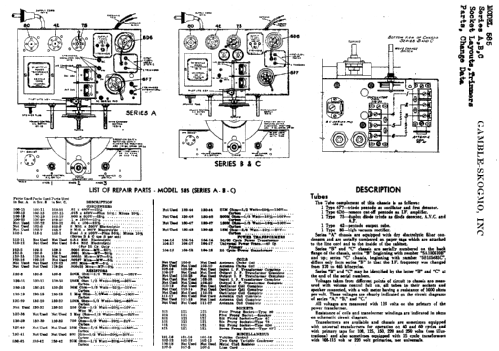

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
