Coronado 94RA1-43-6945A

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 264435) Radio

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 264436) Radio

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 264437) Radio

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 264438) Radio

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 473219) Radio

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 473220) Radio

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 473221) Radio

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 473222) Radio

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 473223) Radio

Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 473224) Radio
Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 473218) Radio Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 264434) Radio
Use red slider bar for more.
Coronado 94RA1-43-6945A ; Gamble-Skogmo, Inc.; (ID = 473218) Radio
Gamble-Skogmo, Inc.;: Coronado 94RA1-43-6945A [Radio] ID = 473218 825x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coronado 94RA1-43-6945A, Gamble-Skogmo, Inc.; Minneapolis, MN:

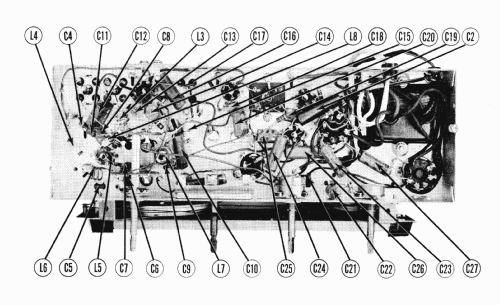

SAMS Photofact reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6BE6 6BA6 6BA6 6AL5 6AV6 6V6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.25 inch = 23.5 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Coronado 94RA1-43-6945A - Gamble-Skogmo, Inc.;
Material Wooden case
Shape Console with any shape - in general
Notes The Coronado model 94RA1-43-6945A and the 94RA1-43-6945B made by Gamble-Skogmo, Inc. are AC operated AM-FM receivers with loop antenna.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 9-49, 4917-6, set 69, folder 6)


All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
Here you find 658 models, 292 with images and 601 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
