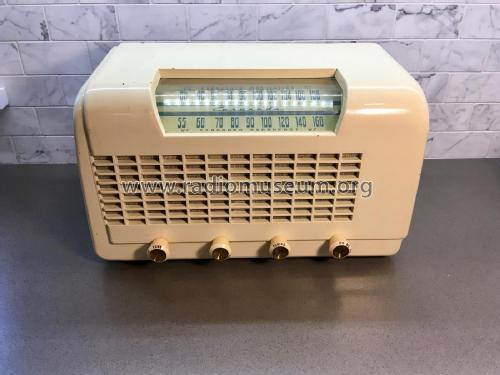

Coronado 94RA1-43-8511A

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 375021) Radio

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 375023) Radio

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 375025) Radio

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 375026) Radio

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 1431318) Radio

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 1431319) Radio

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 1431321) Radio

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 1431322) Radio

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 1431323) Radio

Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 1431324) Radio
Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 2325720) Radio Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 2325721) Radio
Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 2325718) Radio Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 2325722) Radio
Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 2325723) Radio Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 2325719) Radio
Use red slider bar for more.
Coronado 94RA1-43-8511A ; Gamble-Skogmo, Inc.; (ID = 2325720) Radio
Gamble-Skogmo, Inc.;: Coronado 94RA1-43-8511A [Radio] ID = 2325720 1400x1206
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coronado 94RA1-43-8511A, Gamble-Skogmo, Inc.; Minneapolis, MN

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6BE6 6BA6 6BA6 6AL5 6AV6 6V6GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.9 W (unknown quality)
from Radiomuseum.org Model: Coronado 94RA1-43-8511A - Gamble-Skogmo, Inc.;
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14.25 x 9 x 7.5 inch / 362 x 229 x 191 mm
Notes

4" x 6" PM elliptical speaker.  Phono port in back.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
