M33

M33 ; Garod Radio Corp.; (ID = 383817) Radio

M33 ; Garod Radio Corp.; (ID = 383819) Radio
M33 ; Garod Radio Corp.; (ID = 2134254) Radio M33 ; Garod Radio Corp.; (ID = 2134305) Radio

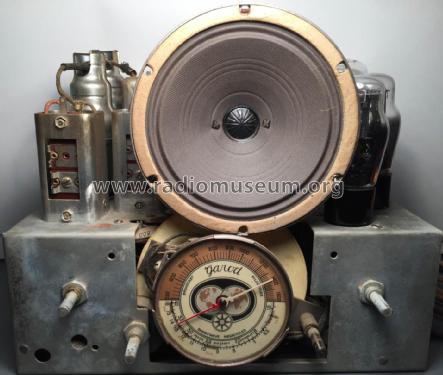

M33 ; Garod Radio Corp.; (ID = 2134278) Radio M33 ; Garod Radio Corp.; (ID = 2134247) Radio
M33 ; Garod Radio Corp.; (ID = 2134250) Radio
Use red slider bar for more.
M33 ; Garod Radio Corp.; (ID = 2134254) Radio
Garod Radio Corp.;: M33 [Radio] ID = 2134254 1400x1156
Select picture or schematic to display from thumbnails on the right and click for download.
For model M33, Garod Radio Corp.; Brooklyn (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Garod Radio Corp.; Brooklyn (NY)
Year: 1935 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6K7 6H6 6F5 43 25Z5 3-40
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: M33 - Garod Radio Corp.; Brooklyn NY
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before


All listed radios etc. from Garod Radio Corp.; Brooklyn (NY)
Here you find 378 models, 95 with images and 345 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
