For model Gauers VHF, Gauer Electronic, Zürich:

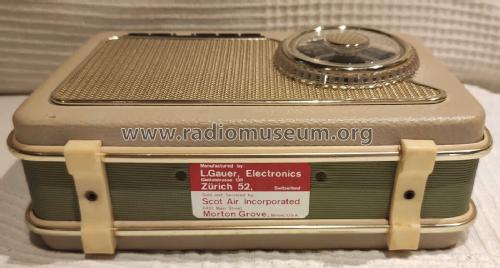

L.Gauer, Electronics - Scot Air Incorporated USA - beige/grün - Ursprung: Klaus R. Tiefenbacher

Country:  Switzerland
Manufacturer / Brand:  Gauer Electronic, Zürich
alternative name

Gauers
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
schematic requested
Main principle Superheterodyne (common)
Tuned circuits 1 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 2 × 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Gauers VHF - Gauer Electronic, Zürich
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 200 x 120 x 80 mm / 7.9 x 4.7 x 3.1 inch

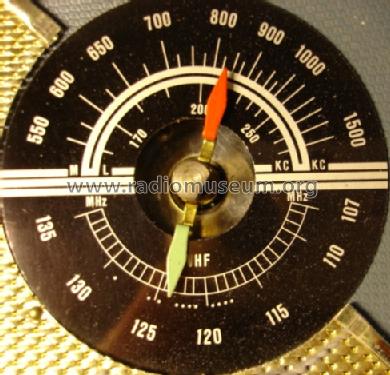

Notes Transistoren: 2× OC171, 3× OC170, 2× OC75, 2× OC74. VHF-Bereich von 107-135 MHz zum Flugfunk-Empfang. (VHF-AM!). Hersteller war Minerva Wien - eine Variante des UKW Transistors 611a.
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 280.00 sfr
Source of data - - Data from my own collection / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) Museums Bote, Österr. (Heft 108/2001, S.12 ff, Gerätebeschreibung)

Model page created by Klaus Dräger. See "Data change" for further contributors.
