UKW - Transistor 611A Nr.: 777401 - 869900

UKW - Transistor 611A; Minerva-Radio (ID = 20071) Radio

UKW - Transistor 611A; Minerva-Radio (ID = 1293716) Radio

UKW - Transistor 611A; Minerva-Radio (ID = 1293719) Radio

UKW - Transistor 611A; Minerva-Radio (ID = 71710) Radio
UKW - Transistor 611A; Minerva-Radio (ID = 123878) Radio UKW - Transistor 611A; Minerva-Radio (ID = 123879) Radio
UKW - Transistor 611A; Minerva-Radio (ID = 108441) Radio UKW - Transistor 611A; Minerva-Radio (ID = 289002) Radio
UKW - Transistor 611A; Minerva-Radio (ID = 755889) Radio UKW - Transistor 611A; Minerva-Radio (ID = 755890) Radio
UKW - Transistor 611A; Minerva-Radio (ID = 1010969) Radio UKW - Transistor 611A; Minerva-Radio (ID = 1080370) Radio
UKW - Transistor 611A; Minerva-Radio (ID = 1080371) Radio UKW - Transistor 611A; Minerva-Radio (ID = 1080372) Radio
Use red slider bar for more.
UKW - Transistor 611A; Minerva-Radio (ID = 123878) Radio

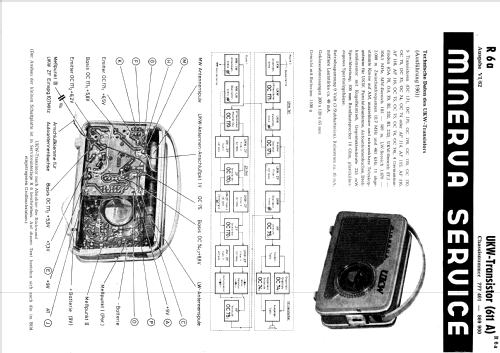

Minerva-Radio: UKW - Transistor 611A [Radio] ID = 123878 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW - Transistor 611A Nr.: 777401 - 869900, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
UKW-Transistor 61

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC171 or. AF114 OC171 or. AF115 OC170 or. AF116 OC170 or. AF116 OC170 or. AF116 OC75 OC75 OC74 OC74
Main principle Super-Heterodyne (Super in general); ZF/IF 461/10700 kHz; 4 AF stage(s)
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 × 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: UKW - Transistor 611A [Nr.: 777401 - 869900] - Minerva-Radio Radiola-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 120 x 65 mm / 7.9 x 4.7 x 2.6 inch
Notes 2. Ausführung. Etwas geänderte Schaltung und ab Februar 1961 geänderte Transistortypen: AF114, AF115, AF116;
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Museums Bote, Österr. (Heft 108/2001, S.11 ff, Gerätebeschreibung)
