AM/FM Clock Radio CR-223

AM/FM Clock Radio CR-223; GBC; Milano (ID = 1605759) Radio AM/FM Clock Radio CR-223; GBC; Milano (ID = 1605762) Radio
AM/FM Clock Radio CR-223; GBC; Milano (ID = 1605763) Radio AM/FM Clock Radio CR-223; GBC; Milano (ID = 1605767) Radio

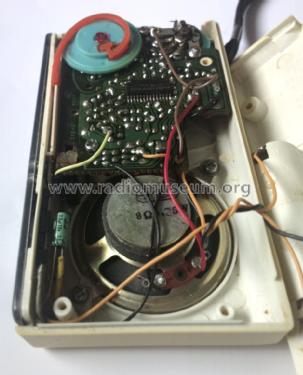

AM/FM Clock Radio CR-223; GBC; Milano (ID = 1605769) Radio AM/FM Clock Radio CR-223; GBC; Milano (ID = 1605775) Radio
AM/FM Clock Radio CR-223; GBC; Milano (ID = 1605776) Radio AM/FM Clock Radio CR-223; GBC; Milano (ID = 1605778) Radio
Use red slider bar for more.
AM/FM Clock Radio CR-223; GBC; Milano (ID = 1605759) Radio
GBC; Milano: AM/FM Clock Radio CR-223 [Radio] ID = 1605759 933x403
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Clock Radio CR-223, GBC; Milano:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Radio with other functions
Power type and voltage Dry Batteries / AA 2 ×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: AM/FM Clock Radio CR-223 - GBC; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 135 x 30 x 78 mm / 5.3 x 1.2 x 3.1 inch
Notes

1 IC. Speaker 0,25 W / 8 Ohm.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
