Brian FM/5

Brian FM/5; GBC; Milano (ID = 620695) Radio

Brian FM/5; GBC; Milano (ID = 620696) Radio
Brian FM/5; GBC; Milano (ID = 1279831) Radio Brian FM/5; GBC; Milano (ID = 1092779) Radio

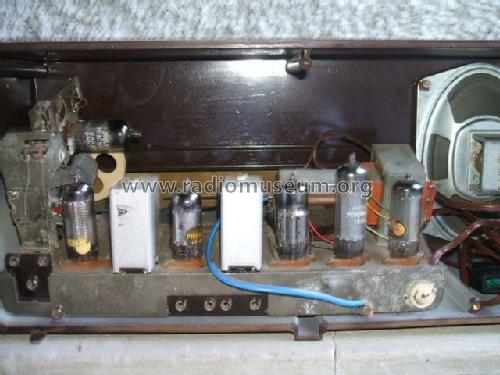

Brian FM/5; GBC; Milano (ID = 485115) Radio Brian FM/5; GBC; Milano (ID = 485113) Radio
Brian FM/5; GBC; Milano (ID = 485116) Radio Brian FM/5; GBC; Milano (ID = 485114) Radio
Brian FM/5; GBC; Milano (ID = 1053480) Radio
Use red slider bar for more.
Brian FM/5; GBC; Milano (ID = 1279831) Radio
GBC; Milano: Brian FM/5 [Radio] ID = 1279831 933x449
Select picture or schematic to display from thumbnails on the right and click for download.
For model Brian FM/5, GBC; Milano

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 UABC80 UL84 UY85
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Brian FM/5 - GBC; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 445 x 185 x 135 mm / 17.5 x 7.3 x 5.3 inch
Notes Gamme d'onda: OM, OC, FM, TV.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 31'500.00 ITL
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in Selezione Radio-Tv Novembre 1964

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from GBC; Milano
Here you find 272 models, 220 with images and 137 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
