Button AR206

Button AR206; GBC; Milano (ID = 1414011) Car Radio
Use red slider bar for more.
Button AR206; GBC; Milano (ID = 1414011) Car Radio

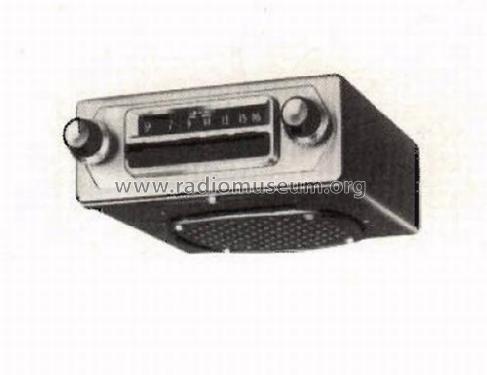

GBC; Milano: Button AR206 [Car Radio] ID = 1414011 500x385
Select picture or schematic to display from thumbnails on the right and click for download.
For model Button AR206, GBC; Milano:
mmagine da Selezione Radio-Tv Novembre 1964

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1964 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 5:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
Loudspeaker
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Button AR206 - GBC; Milano
Material Metal case
Dimensions (WHD) 220 x 180 x 70 mm / 8.7 x 7.1 x 2.8 inch
Notes 2 diodi.
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in Selezione Radio-Tv Novembre 1964

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from GBC; Milano
Here you find 282 models, 221 with images and 145 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
