Convaire FM/36

Convaire FM/36; GBC; Milano (ID = 1064220) Radio

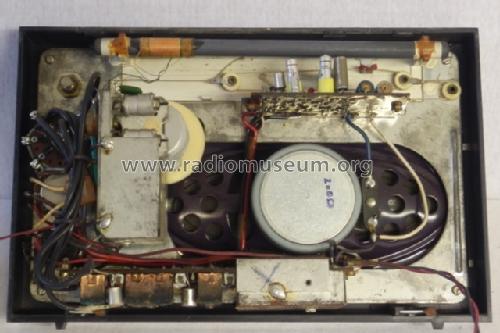

Convaire FM/36; GBC; Milano (ID = 1276337) Radio Convaire FM/36; GBC; Milano (ID = 1276339) Radio
Convaire FM/36; GBC; Milano (ID = 711821) Radio
Use red slider bar for more.
Convaire FM/36; GBC; Milano (ID = 1276337) Radio
GBC; Milano: Convaire FM/36 [Radio] ID = 1276337 568x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Convaire FM/36, GBC; Milano

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Convaire FM/36 - GBC; Milano
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 205 x 90 mm / 10.6 x 8.1 x 3.5 inch
Notes Antenna telescopica per FM selezione di gamma a commutatore.
Controllo volume e tono.
Antenna in ferroxcube incorporata per OM.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Mentioned in Catalogo produzione G.B.C. 1967

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
