FM200

FM200; GBC; Milano (ID = 1055015) Radio
FM200; GBC; Milano (ID = 1376647) Radio
Use red slider bar for more.
FM200; GBC; Milano (ID = 1376647) Radio
GBC; Milano: FM200 [Radio] ID = 1376647 600x313
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM200, GBC; Milano:

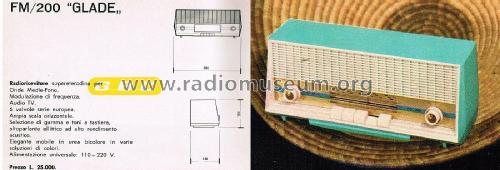

da Selezione radio tv 3-62

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BQ7A 6AJ8 6BA6 6T8 35D5 35A3
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: FM200 - GBC; Milano
Material Bakelite or Plastics (type unknown)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 360 x 150 x 150 mm / 14.2 x 5.9 x 5.9 inch
Notes

Ricevitore AM/FM (anche audio-TV).

Alimentazione con autotrasformatore.

Price in first year of sale 25'000.00 Lit
Source of data Guida Pratica Antique Radio II (2000)
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
