Recital FM4

Recital FM4; GBC; Milano (ID = 268236) Radio

Recital FM4; GBC; Milano (ID = 613504) Radio

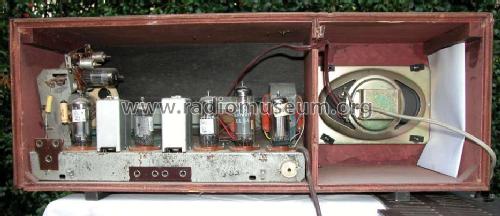

Recital FM4; GBC; Milano (ID = 267998) Radio Recital FM4; GBC; Milano (ID = 268000) Radio
Recital FM4; GBC; Milano (ID = 655872) Radio Recital FM4; GBC; Milano (ID = 655873) Radio

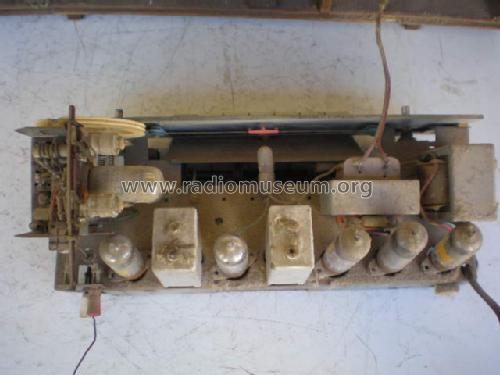

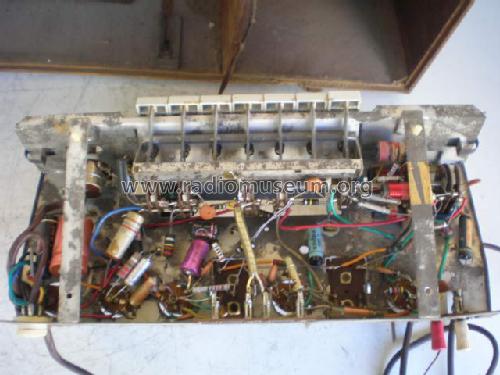

Recital FM4; GBC; Milano (ID = 655874) Radio Recital FM4; GBC; Milano (ID = 655875) Radio
Recital FM4; GBC; Milano (ID = 655876) Radio Recital FM4; GBC; Milano (ID = 1004352) Radio
Recital FM4; GBC; Milano (ID = 1004353) Radio Recital FM4; GBC; Milano (ID = 1004354) Radio
Use red slider bar for more.
Recital FM4; GBC; Milano (ID = 267998) Radio
GBC; Milano: Recital FM4 [Radio] ID = 267998 933x429
Select picture or schematic to display from thumbnails on the right and click for download.
For model Recital FM4, GBC; Milano

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1961–1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 UABC80 UL84 UY85
Main principle Superheterodyne (common)
Tuned circuits 3 AM circuit(s)     3 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Recital FM4 - GBC; Milano
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 190 x 160 mm / 19.7 x 7.5 x 6.3 inch
Notes Riceve onde medie, corte, FM e audio TV.
Wave bands: BC, SW, FM, audio-TV.
Price in first year of sale 32'000.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Guida Pratica Antique Radio II (2000)
Literature/Schematics (1) -- Schematic

Model page created by Mario Sofia. See "Data change" for further contributors.



All listed radios etc. from GBC; Milano
Here you find 282 models, 221 with images and 145 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
