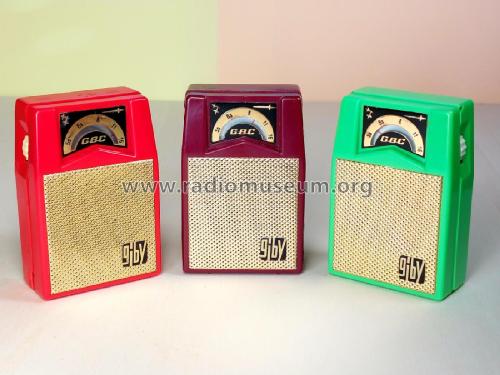

Giby AR/19-B

Giby AR/19-B; GBC; Milano (ID = 754842) Radio
Giby AR/19-B; GBC; Milano (ID = 699091) Radio Giby AR/19-B; GBC; Milano (ID = 678026) Radio
Giby AR/19-B; GBC; Milano (ID = 754211) Radio Giby AR/19-B; GBC; Milano (ID = 754248) Radio
Use red slider bar for more.
Giby AR/19-B; GBC; Milano (ID = 699091) Radio
GBC; Milano: Giby AR/19-B [Radio] ID = 699091 833x874
Select picture or schematic to display from thumbnails on the right and click for download.
For model Giby AR/19-B, GBC; Milano

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC75 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Giby AR/19-B - GBC; Milano
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 68 x 100 x 30 mm / 2.7 x 3.9 x 1.2 inch
Notes Alimentatore da rete opzionale.
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 13'800.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 100, marzo-aprile 2011)
Literature/Schematics (1) -- Schematic
Documents regarding this model
  Radio a transistor italiane in scatola di montaggio: GBC e altre (Gentile concessione L.Salvatore/ARM) 5797 KB

Model page created by Alessandro De Poi. See "Data change" for further contributors.
