Mambo

Mambo ; GBC; Milano (ID = 528216) R-Player
Mambo ; GBC; Milano (ID = 355658) R-Player
Use red slider bar for more.
Mambo ; GBC; Milano (ID = 355658) R-Player

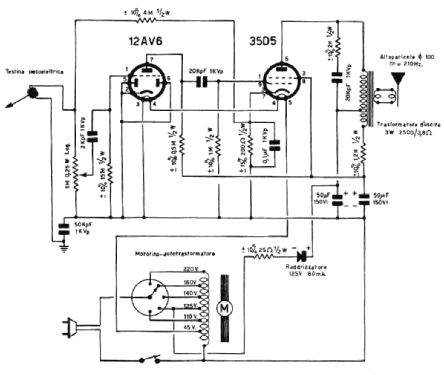

GBC; Milano: Mambo [R-Player] ID = 355658 485x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mambo, GBC; Milano:
GBC, Selezione di tecnica radio-tv, Dicembre 1959

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1959 Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: 12AV6 35D5
Semiconductors (the count is only for transistors) E125C80
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110-280 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Mambo - GBC; Milano
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 300 x 240 x 90 mm / 11.8 x 9.4 x 3.5 inch
Notes Giradischi a 4 velocità.
4-speed record player.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 18'900.00 LIT
Mentioned in -- Original prospect or advert (GBC, Selezione di tecnica radio-tv, Dicembre 1959)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
