For model PARIS FM/855-B, GBC; Milano:
radio portatile della mia collezione

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: BF235 BF235 BF233 BF233 BF233 BF233 TBA820
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220; 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: PARIS FM/855-B - GBC; Milano
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 295 x 180 x 73 mm / 11.6 x 7.1 x 2.9 inch

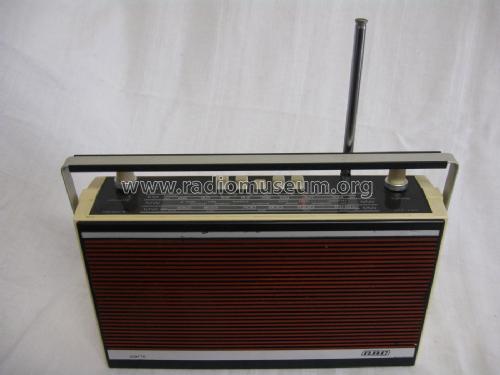

Notes On the top, between the volume and tuning knobs, there are five keys: OFF-ON, TONE, FM, MW PHONO. AFC-AGC.
Laterally there is a socket for external antenna;
on the back: a five-pin DIN jack for tape recorder and record player, a two-prong for external loudspeaker, access door to batteries and output of the power cord;
ferrite antenna of 17 cm.
Sul lato superiore, tra le manopole volume e tuning, sono presenti cinque tasti: OFF-ON; TONE; FM; MW; PHONO. AFC- AGC.
Lateralmente c'è una presa per antenna esterna;
sul lato posteriore: una presa DIN a cinque poli per registratore e giradischi; una a due poli per altoparlante esterno; sportello di accesso alle pile e per l'uscita del cavo di alimentazione elettrica;
antenna in ferrite di 17 cm.
Net weight (2.2 lb = 1 kg) 1.680 kg / 3 lb 11.2 oz (3.7 lb)

Model page created by Felice Nicolini. See "Data change" for further contributors.
