• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1979 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 106981

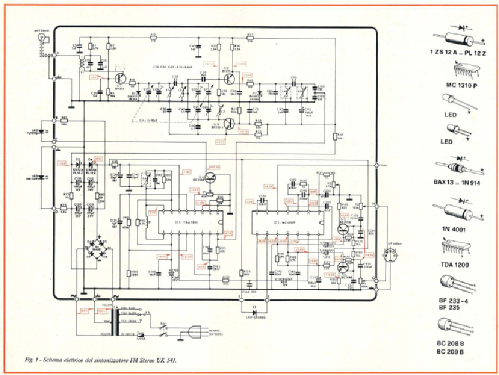

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Sintonizzatore Stereo Fm UK541 - Amtron, High-Kit, Amtroncraft;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 260 x 150 x 78 mm / 10.2 x 5.9 x 3.1 inch

• Notes
• 8 diodi 2 circuiti integrati. Prodotto da Amtron, distribuito da GBC in kit oppure già assemblato.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Author
• Model page created by Giorgio Busletta. See "Data change" for further contributors.
