High-Kit Stereo Amplifier UB-31

Amtron, (High-Kit, Amtroncraft); Milano

  • Year
  • 1965 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 161600

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 8 W (unknown quality)
  • Material
  • Special material, described in the notes.
  • from Radiomuseum.org
  • Model: High-Kit Stereo Amplifier UB-31 - Amtron, High-Kit, Amtroncraft;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 332 x 77 x 223 mm / 13.1 x 3 x 8.8 inch
  • Notes
  • Risposta di frequenza: 3 dB da 30 a 18000 Hz.

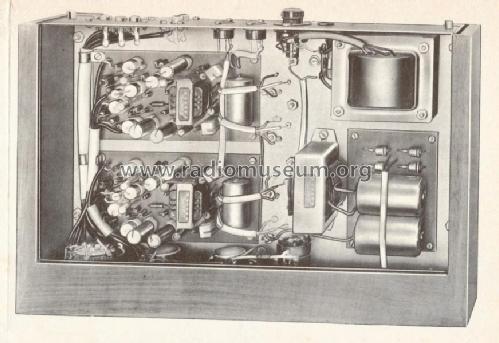

    Il telaio è in lamiera robusta con ossidazione in profondità, la griglia di protezione è doppiamente verniciata, il mobile è interamente in palissandro, la mascherina frontale è in alluminio.
  • Net weight (2.2 lb = 1 kg)
  • 4.7 kg / 10 lb 5.6 oz (10.352 lb)
  • Literature/Schematics (1)
  • Selezione Radio-TV Aprile 1965
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
