• Country
• Italy

• Manufacturer / Brand
• GBC; Milano

• Year
• 1970 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 159653

• • alternative name: Gian Bruto Castelfranchi

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

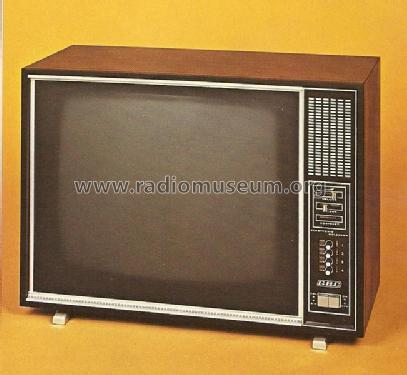

• Model: Televisore soprammobile UT-5520 - GBC; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 438 x 370 mm / 23.6 x 17.2 x 14.6 inch

• Notes
• Televisore soprammobile con cinescopio da 20" 110° schermo fume` tipo Black Screen
  Gamma VHF: canali A-H
  Gamma UHF: canali 21-47
  Prese a boccola per Antenne esterne
  Selettore integrato VHF-UHF a varicap con preselezione automatica di 4 programmi
  Potenza asorbita: 150 Watt

• Literature/Schematics (1)
• Selezione Radio-TV Dicembre 1972

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
