Televisore transportabile Karlos UT-6020

Televisore transportabile Karlos UT-6020; GBC; Milano (ID = 653188) Television
Use red slider bar for more.
Televisore transportabile Karlos UT-6020; GBC; Milano (ID = 653188) Television

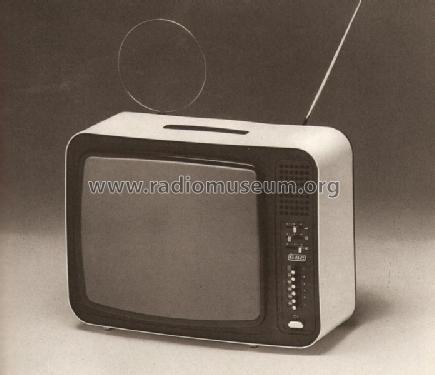

GBC; Milano: Televisore transportabile Karlos UT-6020 [Television] ID = 653188 697x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Televisore transportabile Karlos UT-6020, GBC; Milano:
Selezione Radio-TV Ottobre 1974

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1972 ?? Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: Televisore transportabile Karlos UT-6020 - GBC; Milano
Material Special material, described in the notes.
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 310 x 380 mm / 21.7 x 12.2 x 15 inch
Notes Televisore transportabile 20" a transistori
Selettore integrato con sintonia varicap
Possibilita´ di memorizzare 6 programmi
Comandi di regolazione a sliders
Antenna a stilo incorporata per la ricezione dei programmi VHF e UHF
Mobile in resina antiurto colore bianco o rosso con frontale brunito
Literature/Schematics (1) Selezione Radio-TV Ottobre 1974

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
