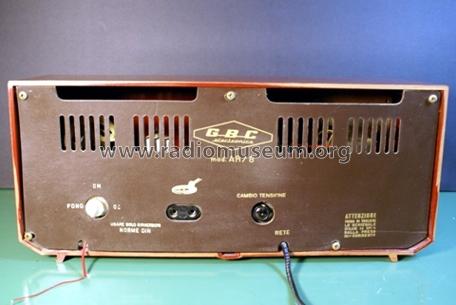

Wonderful AR/8

GBC; Milano

  • Year
  • 1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 151463
    • alternative name: Gian Bruto Castelfranchi

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 467 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Wonderful AR/8 - GBC; Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 444 x 190 x 136 mm / 17.5 x 7.5 x 5.4 inch
  • Notes
  • Alimentazione con autotrasformatore.
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Literature/Schematics (1)
  • -- Schematic (Radio Italiane - Secondo Volume di Mureddu & Atzeri)
  • Author
  • Model page created by Gianluigi Miazzi. See "Data change" for further contributors.
