• Country
• Italy

• Manufacturer / Brand
• GBC; Milano

• Year
• 1970 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 324533

• • alternative name: Gian Bruto Castelfranchi

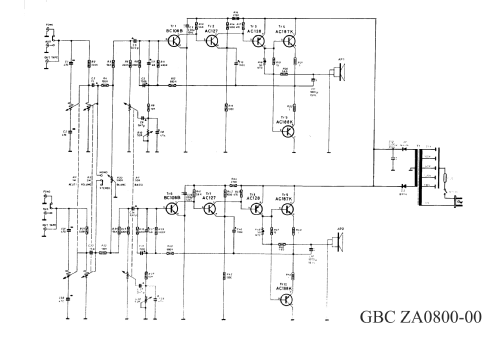

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BC108 AC127 AC128 AC187 AC188 BC108 AC127 AC128 AC187 AC188 BY114 BY114

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 180; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Various materials

• from Radiomuseum.org
• Model: ZA0800-00 - GBC; Milano

• Shape
• Tablemodel, with any shape - general.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.

• Other Models

• Here you find 419 models, 297 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
