AC All-Wave Super six BC3860 super 6

AC All-Wave Super six BC3860 super 6; GEC, General (ID = 1040619) Radio

AC All-Wave Super six BC3860 super 6; GEC, General (ID = 1040620) Radio

AC All-Wave Super six BC3860 super 6; GEC, General (ID = 1040621) Radio
AC All-Wave Super six BC3860 super 6; GEC, General (ID = 1242683) Radio AC All-Wave Super six BC3860 super 6; GEC, General (ID = 1242684) Radio
Use red slider bar for more.

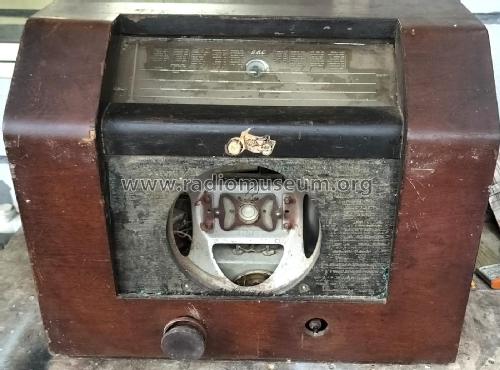

AC All-Wave Super six BC3860 super 6; GEC, General (ID = 1242683) Radio
GEC, General: AC All-Wave Super six BC3860 super 6 [Radio] ID = 1242683 933x968
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC All-Wave Super six BC3860 super 6, GEC, General Electric Co.; London:
By courtesy of guest Stefan Basaj, Preston, UK.

Country:  Great Britain (UK)
Manufacturer / Brand:  GEC, General Electric Co.; London
Brand

Gecophone
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: W63 X41 W63 DH63 Y63 KT63 U50
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 40 - 100 cycles, 190 - 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: AC All-Wave Super six BC3860 super 6 - GEC, General Electric Co.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17.75 x 17 x 11.25 inch / 451 x 432 x 286 mm
Notes Magic Eye; "chromoscopic" scale. Short waves from 16.5 to 51 metres. Model BC3860 is for mains of 190-250 volt, 40-100 cycles and BC3860L is for 110-130 and 210-230 volt, also 40-100 cycles. A very similar chassis is fitted in the BC3868 AC All-Wave Super 6 Radiogram (for 190-250 volts, 50-60 cycles.
Source of data Radio! Radio!
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (January 15, 1938, page 282 (VI Supplement))

Model page created by Howard Craven. See "Data change" for further contributors.
