AC Touchtune 5 BC3960

AC Touchtune 5 BC3960; GEC, General (ID = 1251016) Radio

AC Touchtune 5 BC3960; GEC, General (ID = 1251017) Radio

AC Touchtune 5 BC3960; GEC, General (ID = 1251018) Radio

AC Touchtune 5 BC3960; GEC, General (ID = 1251019) Radio
AC Touchtune 5 BC3960; GEC, General (ID = 1489561) Radio AC Touchtune 5 BC3960; GEC, General (ID = 1489562) Radio
Use red slider bar for more.

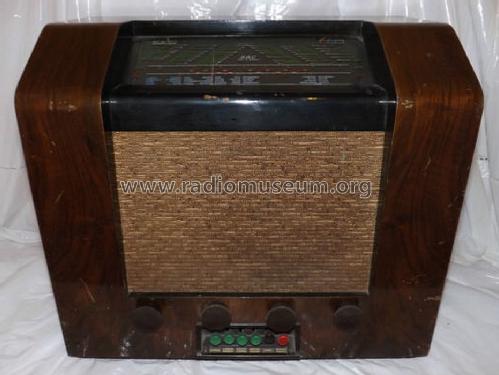

AC Touchtune 5 BC3960; GEC, General (ID = 1489561) Radio
GEC, General: AC Touchtune 5 BC3960 [Radio] ID = 1489561 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC Touchtune 5 BC3960, GEC, General Electric Co.; London:
By Courtesy Of EBAY User: ryehill_retail

Country:  Great Britain (UK)
Manufacturer / Brand:  GEC, General Electric Co.; London
Brand

Gecophone
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: X65 W63 or KTW63 DH63 KT63 U50
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 190-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AC Touchtune 5 BC3960 - GEC, General Electric Co.;
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Push buttons for five pre-set radio stations. Same as the BC3960L model except for AC mains voltage. The same chassis is fitted in the BC3964 console radio and a similar chassis is fitted in the BC3968 radiogram.
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (385)

Model page created by Howard Craven. See "Data change" for further contributors.
