For model BC3140, GEC, General Electric Co.; London:

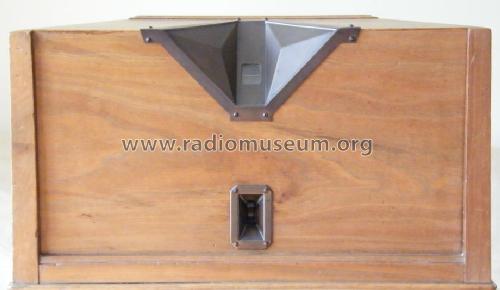

The escutcheon is missing from the tuning knob and it has been refinished prior to my ownership

Country:  Great Britain (UK)
Manufacturer / Brand:  GEC, General Electric Co.; London
Brand

Gecophone
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner

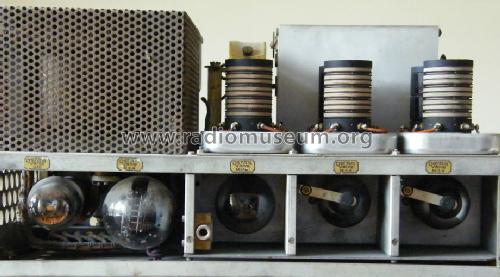

Valves / Tubes 5: MS4 MS4 MH4 PX4 U10
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: BC3140 - GEC, General Electric Co.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 18.5 x 10.5 x 12.5 inch / 470 x 267 x 318 mm
Notes Presented in a solid walnut case. Also available for low voltage mains as model BC3140L. The GEC Moving Coil and Inductor Dynamic loudspeakers were recommended for use with this model.
Price in first year of sale 30.00 GBP
Source of data -- Original prospect or advert

Model page created by Mike Izycky. See "Data change" for further contributors.
