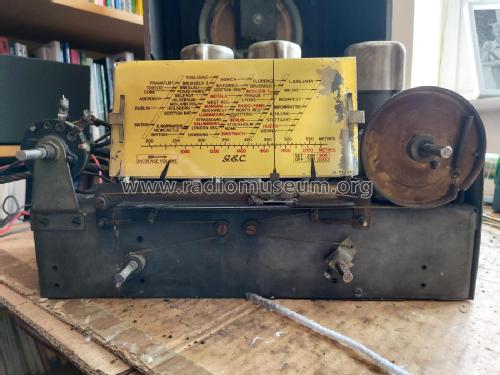

Battery Super 4 BC3746

Battery Super 4 BC3746; GEC, General (ID = 571063) Radio

Battery Super 4 BC3746; GEC, General (ID = 1025669) Radio

Battery Super 4 BC3746; GEC, General (ID = 1025670) Radio

Battery Super 4 BC3746; GEC, General (ID = 1025671) Radio
Use red slider bar for more.
Battery Super 4 BC3746; GEC, General (ID = 571063) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  GEC, General Electric Co.; London
Brand

Gecophone
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: X21 VS24 HD22 QP21
Main principle Superheterodyne (common); ZF/IF 125 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 9 & 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Battery Super 4 BC3746 - GEC, General Electric Co.;
Literature/Schematics (1) "Radio Schakelingen" (J.G.R. van Dijck)
Literature/Schematics (2) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (92)

Model page created by Gidi Verheijen. See "Data change" for further contributors.
