Sobell S-334

Sobell S-334; GEC, General (ID = 706834) Radio Sobell S-334; GEC, General (ID = 706825) Radio
Sobell S-334; GEC, General (ID = 706829) Radio Sobell S-334; GEC, General (ID = 706823) Radio

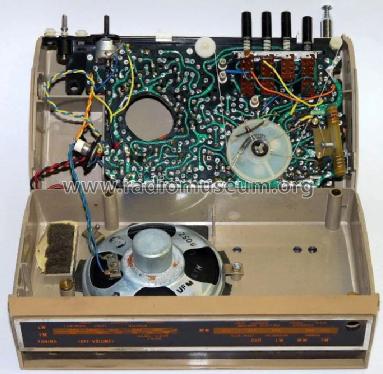

Sobell S-334; GEC, General (ID = 706826) Radio Sobell S-334; GEC, General (ID = 706828) Radio
Sobell S-334; GEC, General (ID = 706831) Radio Sobell S-334; GEC, General (ID = 706833) Radio
Use red slider bar for more.
Sobell S-334; GEC, General (ID = 706834) Radio
GEC, General: Sobell S-334 [Radio] ID = 706834 842x613
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sobell S-334, GEC, General Electric Co.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  GEC, General Electric Co.; London
Brand

Gecophone
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF185 BF185 BF195 BF194 BF194 BC108 AC127 AC128 AC128 AC127
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Sobell S-334 - GEC, General Electric Co.;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 245 x 145 x 72 mm / 9.6 x 5.7 x 2.8 inch
Notes Similar to the GEC G834 model. Frequenzbereich: UKW 88-108 MHz, LW 1250-1950 kHz, MW 200-545 kHz (MW-Skala mit Ländernamen), Verwendung als Portable oder für Betrieb im Auto (Koaxeingang), 8 tlg. Teleskopantenne (70 cm), Ferritantenne (15,5 cm), Anschlüsse für Tonband und Kopfhörer.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Literature/Schematics (1) Trader sheet 1901

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
