Alimentatore a transistori 1498/12

Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 2295040) Power-S Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 1059668) Power-S
Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 1959836) Power-S Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 1959837) Power-S
Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 1959839) Power-S Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 2295038) Power-S
Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 2295039) Power-S Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 2295041) Power-S
Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 2295042) Power-S Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 2295044) Power-S
Use red slider bar for more.
Alimentatore a transistori 1498/12; Geloso SA; Milano (ID = 2295040) Power-S
Geloso SA; Milano: Alimentatore a transistori 1498/12 [Power-S] ID = 2295040 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alimentatore a transistori 1498/12, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1968 Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) 6: OC26 OC26 OC74 OC72 OC75 OC75
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Alimentatore a transistori 1498/12 - Geloso SA; Milano
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 175 x 115 x 75 mm / 6.9 x 4.5 x 3 inch

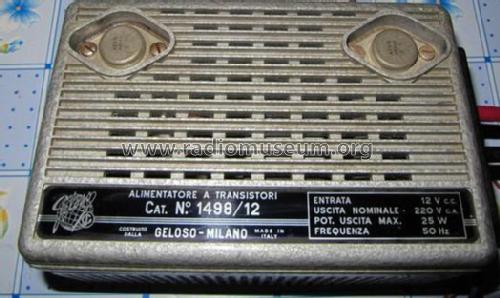

Notes Inverter 1498/12/200, entrata 12 V uscita 220 V.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 23'000.00 LIT
Mentioned in Bollettino Tecnico Geloso (n. 106, primavera 1968)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
