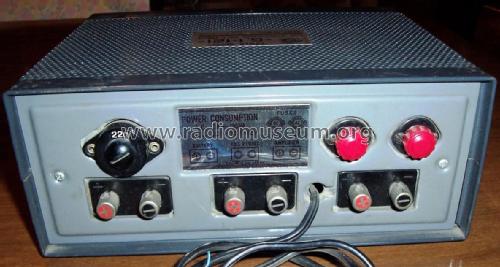

Alimentatore - Power Supply G1/121

Alimentatore - Power Supply G1/121; Geloso SA; Milano (ID = 1959758) Power-S
Alimentatore - Power Supply G1/121; Geloso SA; Milano (ID = 1959755) Power-S Alimentatore - Power Supply G1/121; Geloso SA; Milano (ID = 1959756) Power-S
Alimentatore - Power Supply G1/121; Geloso SA; Milano (ID = 1959757) Power-S
Use red slider bar for more.
Alimentatore - Power Supply G1/121; Geloso SA; Milano (ID = 1959755) Power-S
Geloso SA; Milano: Alimentatore - Power Supply G1/121 [Power-S] ID = 1959755 1156x635
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alimentatore - Power Supply G1/121, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1970 ?? Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) 3: AD149 AC128 AC126
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 240 / 12 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Alimentatore - Power Supply G1/121 - Geloso SA; Milano
Material Metal case
Notes

Questo alimentatore è stato progettato per alimentare gli amplificatori G1/120 e G 230-PA. Entrata: 110/240 Vca 50-60 Hz. Uscita 12 Vcc 3A.

Mentioned in Catalogo Geloso Primavera 1970 Impianti diffusione sonora

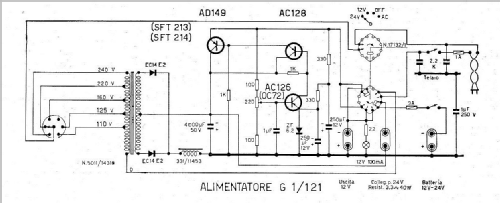

Literature/Schematics (1) Schemi elettrici dei bollettini tecni Geloso n. 112-113

Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
