Alta Voce N 3121

Alta Voce N 3121; Geloso SA; Milano (ID = 2070542) Ampl/Mixer Alta Voce N 3121; Geloso SA; Milano (ID = 2612596) Ampl/Mixer
Use red slider bar for more.
Alta Voce N 3121; Geloso SA; Milano (ID = 2070542) Ampl/Mixer
Geloso SA; Milano: Alta Voce N 3121 [Ampl/Mixer] ID = 2070542 1400x1812
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alta Voce N 3121, Geloso SA; Milano:

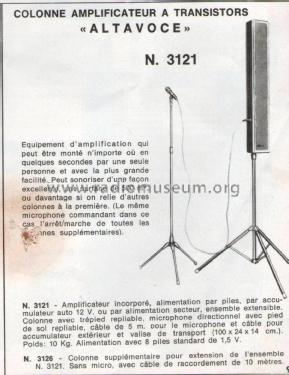

Foto Catalogo Geloso

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1963–1968 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 6: OC75 OC75 OC75 OC72 AD139 AD139
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 8x1,5/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Alta Voce N 3121 - Geloso SA; Milano
Material Various materials
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 1000 x 240 x 140 mm / 39.4 x 9.4 x 5.5 inch
Notes

Altoparlante a colonna, con amplificatore a transistor. Componibile fino a 20 elementi. Dotato di valigia di contenimento per il trasporto.
Alimentato con batterie interne, da accumulatore 12 V o da rete elettrica con alimentatore cat. 1489 fornibile come accessorio.
Le dimensioni indicate sono quelle della valigia di trasporto.


Column transistor amplifier,  by dry or car storage batteries, or by mains supply powered.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 65'000.00 ITL
Mentioned in - - Manufacturers Literature
Literature/Schematics (1) -- Original prospect or advert (Tribuna Illustrata, 1963)
Literature/Schematics (2) Bollettino Tecnico Geloso (n. 99-A, 1966)

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
