Amplibox N.2589

Amplibox N.2589; Geloso SA; Milano (ID = 2070216) Ampl/Mixer
Use red slider bar for more.
Amplibox N.2589; Geloso SA; Milano (ID = 2070216) Ampl/Mixer
Geloso SA; Milano: Amplibox N.2589 [Ampl/Mixer] ID = 2070216 1400x1609

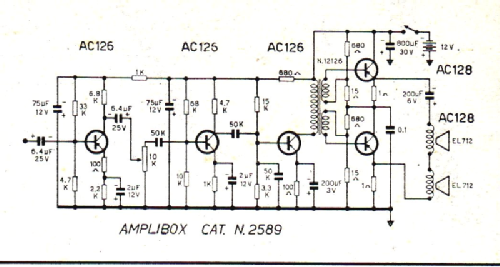

Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplibox N.2589, Geloso SA; Milano:
Foto Catalogo Geloso

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1968 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Dry Batteries / 8 x 1,5 Volt
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Amplibox N.2589 - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 200 x 80 mm / 9.1 x 7.9 x 3.1 inch
Notes

Portable transistor amplifier with handheld, microphone on/off.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Mentioned in - - Manufacturers Literature

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
