Amplificatore a Transistor G-3216

Amplificatore a Transistor G-3216; Geloso SA; Milano (ID = 1030655) Ampl/Mixer

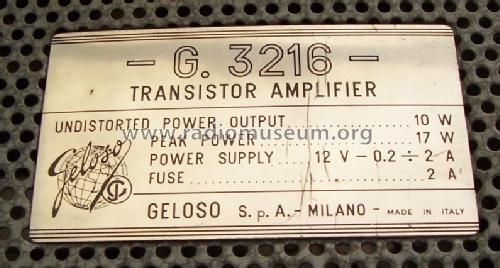

Amplificatore a Transistor G-3216; Geloso SA; Milano (ID = 1028000) Ampl/Mixer Amplificatore a Transistor G-3216; Geloso SA; Milano (ID = 1028001) Ampl/Mixer
Amplificatore a Transistor G-3216; Geloso SA; Milano (ID = 1028002) Ampl/Mixer
Use red slider bar for more.
Amplificatore a Transistor G-3216; Geloso SA; Milano (ID = 1028000) Ampl/Mixer
Geloso SA; Milano: Amplificatore a Transistor G-3216 [Ampl/Mixer] ID = 1028000 907x419
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificatore a Transistor G-3216, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1964 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 8: AC107 AC126 AC107 AC126 AC126 AC128 AD149 AD149
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Line / Batteries (any type) / 100-230 / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Amplificatore a Transistor G-3216 - Geloso SA; Milano
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 240 x 100 x 140 mm / 9.4 x 3.9 x 5.5 inch
Notes Amplificatore a transistor per BF potenza nominale 10 Watt potenza massima 17 Watt. entrate per microfono, fono o registratore, possibilità di miscelazione, controllo di tono. Con il suo alimentatore G 3217 funziona a 12 V o 24 Vcc oppure a 100-230 Vca.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Mentioned in Bollettino Tecnico Geloso

Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
