Amplificatore G269-A

Amplificatore G269-A; Geloso SA; Milano (ID = 397326) Ampl/Mixer
Amplificatore G269-A; Geloso SA; Milano (ID = 397327) Ampl/Mixer Amplificatore G269-A; Geloso SA; Milano (ID = 1908756) Ampl/Mixer
Amplificatore G269-A; Geloso SA; Milano (ID = 1908757) Ampl/Mixer Amplificatore G269-A; Geloso SA; Milano (ID = 1908758) Ampl/Mixer
Amplificatore G269-A; Geloso SA; Milano (ID = 1908759) Ampl/Mixer Amplificatore G269-A; Geloso SA; Milano (ID = 1908760) Ampl/Mixer
Amplificatore G269-A; Geloso SA; Milano (ID = 1908761) Ampl/Mixer Amplificatore G269-A; Geloso SA; Milano (ID = 1908762) Ampl/Mixer
Amplificatore G269-A; Geloso SA; Milano (ID = 1908763) Ampl/Mixer
Use red slider bar for more.
Amplificatore G269-A; Geloso SA; Milano (ID = 397327) Ampl/Mixer
Geloso SA; Milano: Amplificatore G269-A [Ampl/Mixer] ID = 397327 933x637
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificatore G269-A, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1960 Category: Audio Amplifier or -mixer

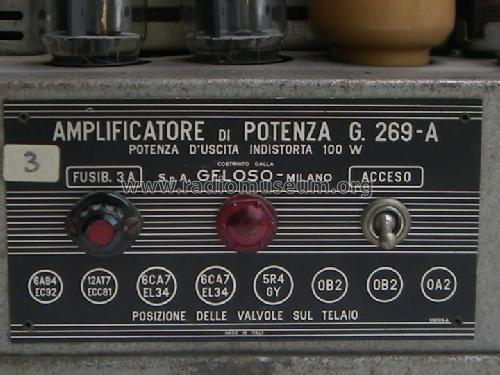

Valves / Tubes 5: 6AB4 or EC92 12AT7 or ECC81 6CA7 or EL34 6CA7 or EL34 5R4GY 0B2 0B2 0A2
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: Amplificatore G269-A - Geloso SA; Milano
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 210 x 220 mm / 17.3 x 8.3 x 8.7 inch
Notes Con un solo preamplificatore pilota (G286-AN) è possibile pilotare da 1 a 20 amplificatori finali (G269-A) per una potenza complessiva di 2000 watt.
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Literature/Schematics (1) Bollettino Tecnico Geloso (n. 78-79 primavera estate 1960)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
