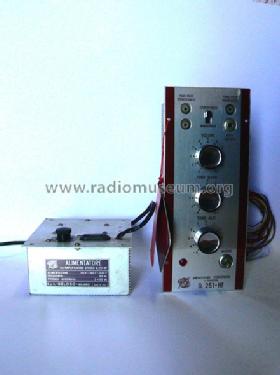

Amplificatore stereo G251-HF

Amplificatore stereo G251-HF; Geloso SA; Milano (ID = 396860) Ampl/Mixer

Amplificatore stereo G251-HF; Geloso SA; Milano (ID = 396862) Ampl/Mixer
Amplificatore stereo G251-HF; Geloso SA; Milano (ID = 1678332) Ampl/Mixer Amplificatore stereo G251-HF; Geloso SA; Milano (ID = 396863) Ampl/Mixer
Amplificatore stereo G251-HF; Geloso SA; Milano (ID = 1678333) Ampl/Mixer Amplificatore stereo G251-HF; Geloso SA; Milano (ID = 1678334) Ampl/Mixer
Use red slider bar for more.
Amplificatore stereo G251-HF; Geloso SA; Milano (ID = 1678332) Ampl/Mixer
Geloso SA; Milano: Amplificatore stereo G251-HF [Ampl/Mixer] ID = 1678332 309x555
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificatore stereo G251-HF, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1966 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 14: AC107 AC126 AF118 AC127 AC132 AD139 AD139 AC107 AC126 AF118 AC127 AC132 AD139 AD139
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 125-220 AC / 24 DC Volt
Loudspeaker - This model requires external speaker(s).
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Amplificatore stereo G251-HF - Geloso SA; Milano
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 100 x 230 x 120 mm / 3.9 x 9.1 x 4.7 inch
Notes Entrate per fono e registratore, funzionamento con batterie o con tensione di rete con apposito alimentatore.
Literature/Schematics (1) Bollettino Tecnico Geloso (n 99A, 1966)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.



All listed radios etc. from Geloso SA; Milano
Here you find 800 models, 724 with images and 557 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
