Centralino G1523C

Centralino G1523C; Geloso SA; Milano (ID = 398390) Radio
Centralino G1523C; Geloso SA; Milano (ID = 1433596) Radio Centralino G1523C; Geloso SA; Milano (ID = 398388) Radio
Centralino G1523C; Geloso SA; Milano (ID = 1433597) Radio Centralino G1523C; Geloso SA; Milano (ID = 1433598) Radio
Centralino G1523C; Geloso SA; Milano (ID = 1455297) Radio Centralino G1523C; Geloso SA; Milano (ID = 1455299) Radio

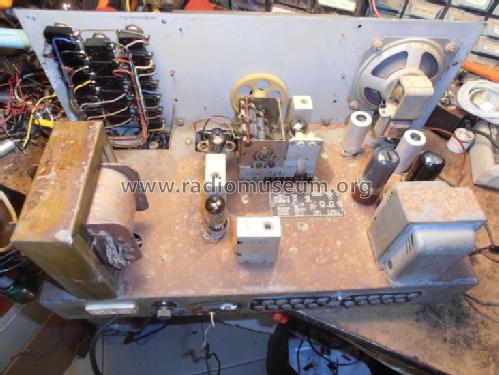

Centralino G1523C; Geloso SA; Milano (ID = 1455304) Radio Centralino G1523C; Geloso SA; Milano (ID = 1455305) Radio
Centralino G1523C; Geloso SA; Milano (ID = 1455306) Radio Centralino G1523C; Geloso SA; Milano (ID = 1455307) Radio
Use red slider bar for more.
Centralino G1523C; Geloso SA; Milano (ID = 1433596) Radio
Geloso SA; Milano: Centralino G1523C [Radio] ID = 1433596 800x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model Centralino G1523C, Geloso SA; Milano:
fonte internet

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 12AX7 12AX7 EL34 or 6CA7 EL34 or 6CA7
Main principle Super-Heterodyne (Super in general); ZF/IF 467/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker 7 or more Loudspeakers
Power out 25 W (unknown quality)
from Radiomuseum.org Model: Centralino G1523C - Geloso SA; Milano
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 266 x 260 mm / 20.5 x 10.5 x 10.2 inch
Notes Gamme d'onda: oc1 25-65 mt, oc2 65-180 mt, om 190-580 mt, fm ouc 87-100,5 MHz.
Possibilità di collegare sino a 20 altoparlanti muniti di trasformatore di linea da 250 ohm. Altoparlante di controllo diametro 100mm.
Ponte di diodi al selenio B300/C200 per anodica, diodo per negativo di griglia (EL34).
Literature/Schematics (1) Bollettino Tecnico Geloso (N. 84 primavera 1962)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
