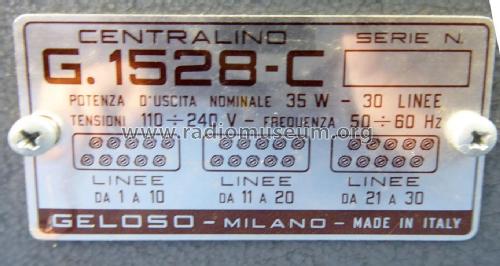

Centralino G1528C

Centralino G1528C; Geloso SA; Milano (ID = 2569522) Radio
Centralino G1528C; Geloso SA; Milano (ID = 1074196) Radio Centralino G1528C; Geloso SA; Milano (ID = 1074197) Radio
Centralino G1528C; Geloso SA; Milano (ID = 2110090) Radio Centralino G1528C; Geloso SA; Milano (ID = 2453663) Radio
Centralino G1528C; Geloso SA; Milano (ID = 2453657) Radio Centralino G1528C; Geloso SA; Milano (ID = 2453658) Radio
Centralino G1528C; Geloso SA; Milano (ID = 2453659) Radio Centralino G1528C; Geloso SA; Milano (ID = 2453660) Radio
Centralino G1528C; Geloso SA; Milano (ID = 2453661) Radio Centralino G1528C; Geloso SA; Milano (ID = 2453662) Radio
Use red slider bar for more.
Centralino G1528C; Geloso SA; Milano (ID = 1074196) Radio
Geloso SA; Milano: Centralino G1528C [Radio] ID = 1074196 933x488
Select picture or schematic to display from thumbnails on the right and click for download.
For model Centralino G1528C, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1970 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 12AX7 12AX7 EL34 or 6CA7 EL34 or 6CA7
Semiconductors (the count is only for transistors) BY126 BY126 BY126 BY126
Main principle Superheterodyne (common); ZF/IF 467/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 35 W (unknown quality)
from Radiomuseum.org Model: Centralino G1528C - Geloso SA; Milano
Material Metal case
Shape Rack
Dimensions (WHD) 490 x 230 x 260 mm / 19.3 x 9.1 x 10.2 inch
Notes 30 linee altoparlanti piu' uno spia interno 10 cm.abbinabile a giradischi G 6/1519

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
