Converter G32

Converter G32; Geloso SA; Milano (ID = 389158) Radio part

Converter G32; Geloso SA; Milano (ID = 389159) Radio part

Converter G32; Geloso SA; Milano (ID = 389160) Radio part

Converter G32; Geloso SA; Milano (ID = 389161) Radio part
Converter G32; Geloso SA; Milano (ID = 389162) Radio part Converter G32; Geloso SA; Milano (ID = 1994452) Radio part
Converter G32; Geloso SA; Milano (ID = 1994453) Radio part Converter G32; Geloso SA; Milano (ID = 1994454) Radio part
Converter G32; Geloso SA; Milano (ID = 1994455) Radio part Converter G32; Geloso SA; Milano (ID = 2005970) Radio part
Converter G32; Geloso SA; Milano (ID = 2005971) Radio part
Use red slider bar for more.

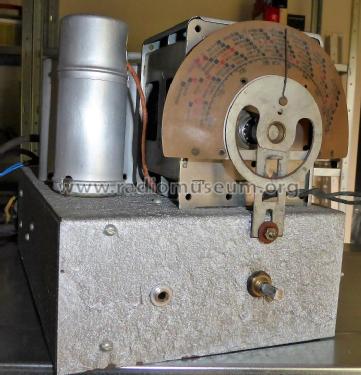

Converter G32; Geloso SA; Milano (ID = 389162) Radio part
Geloso SA; Milano: Converter G32 [Radio part] ID = 389162 665x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Converter G32, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1934 Category: Radio part (not a module)
Valves / Tubes 1: 6A7 or 2A7
Main principle RF Converter/Adapter (not voltage converter); ZF/IF 1200 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit. / 250 & 6,3 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Converter G32 - Geloso SA; Milano
Material Metal case
Shape Chassis only or for «building in»
Notes Convertitore per onde corte, tre gamme: 15,5-33; 31-70; 65-145 mt. Deve essere collegato ad un ricevitore sintonizzato su 1200 kHz.
Literature/Schematics (1) Bollettino Tecnico Geloso (n. 11 primavera 1934)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.



All listed radios etc. from Geloso SA; Milano
Here you find 800 models, 724 with images and 557 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
